Inflatable seal FAQ

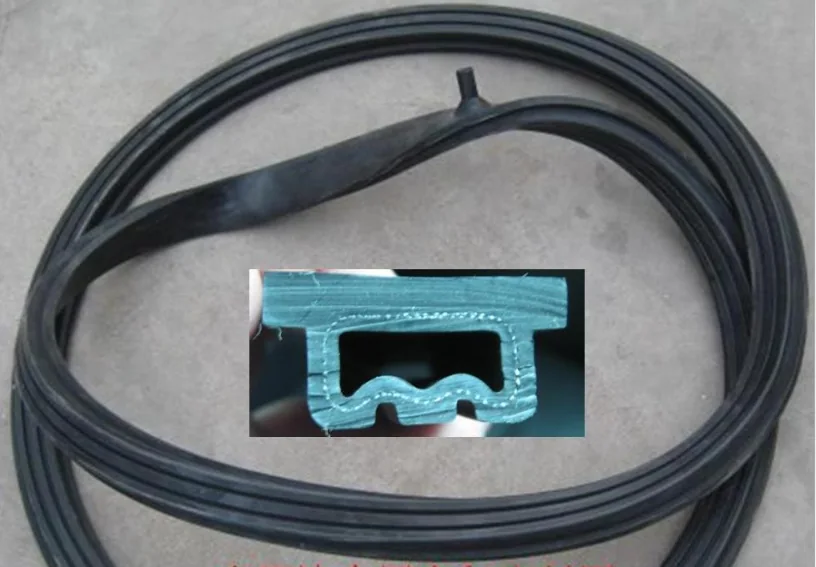

It is a hollow elastomer profile that expands with controlled air pressure to contact a mating surface, then retracts before the equipment moves.

It is useful when the gap changes, the closure is large or uneven, or sliding contact must be reduced during opening and product movement.

Yes. Rings, frames, profiles and valve positions are reviewed against the groove, gap, material exposure and operating cycle.

Common arrangements are axial, radial outward and radial inward. The equipment cross-section determines the useful direction.

Silicone, EPDM, NBR and selected specialty compounds can be reviewed. Final suitability depends on the exact compound and actual exposure.

There is no universal pressure for every profile. Use the setting approved for the selected cross-section, groove, gap and prototype test.

Yes, subject to profile geometry, minimum corner radius and joint review.

Yes. The inlet position and connection style can be coordinated with available space, tube routing and maintenance access.

The groove must support and retain the selected profile without blocking expansion. Its dimensions and corner radii are part of the design.

Remove burrs, sharp edges, oil, dust and old adhesive. Check the full perimeter and mating surface before installation.

Repeated local wear often points to interference, misalignment, a sharp edge or movement before full retraction.

Send the section drawing, overall dimensions, gap range, inflation direction, temperature, medium, cleaning chemicals, cycle rate and quantity.

Prototype quantities can be discussed. The sample should be tested in the actual groove or a representative fixture before production approval.

It can accommodate an approved gap range, but it should not be used to pull a damaged or misaligned closure into position.
